Raspberry Pi Model A+/B+ Adafruit 2.8″ PiTFT Case

IMG_4862



*Raspberry Pi 3 compatible.

Grab a kit of this case from our store or grab the design files if you want to make your own or modify it!

This Case is designed to work with both the A+ and B+ models of the Raspberry Pi

Step 1: Remove the MaskingIMG_4757

All of the acrylic components have a brown paper masking on them. You will need to remove it to make the parts fit together nicely. It is best to start at a corner.

IMG_4760

Make sure to remove the mask from both sides

IMG_4820



Step 2: Put the USB/Ethernet side in place

IMG_4825

IMG_4826

Step 3: Put the SD Card side in place

IMG_4829

IMG_4831



Step 4: Put the Top Panel in place

IMG_4833

IMG_4836

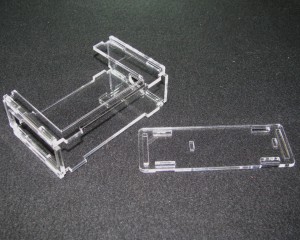

Step 5: Put the side that isn't the HDMI/Audio side in place

IMG_4840

The clip slots go closer to the SD card side and should be slightly above the midpoint.

IMG_4842

Step 6: Attach the delrin clips to the PCB

IMG_4843

IMG_4845



Step 7: Attach the HDMI/Audio/Power side

IMG_4848

IMG_4850

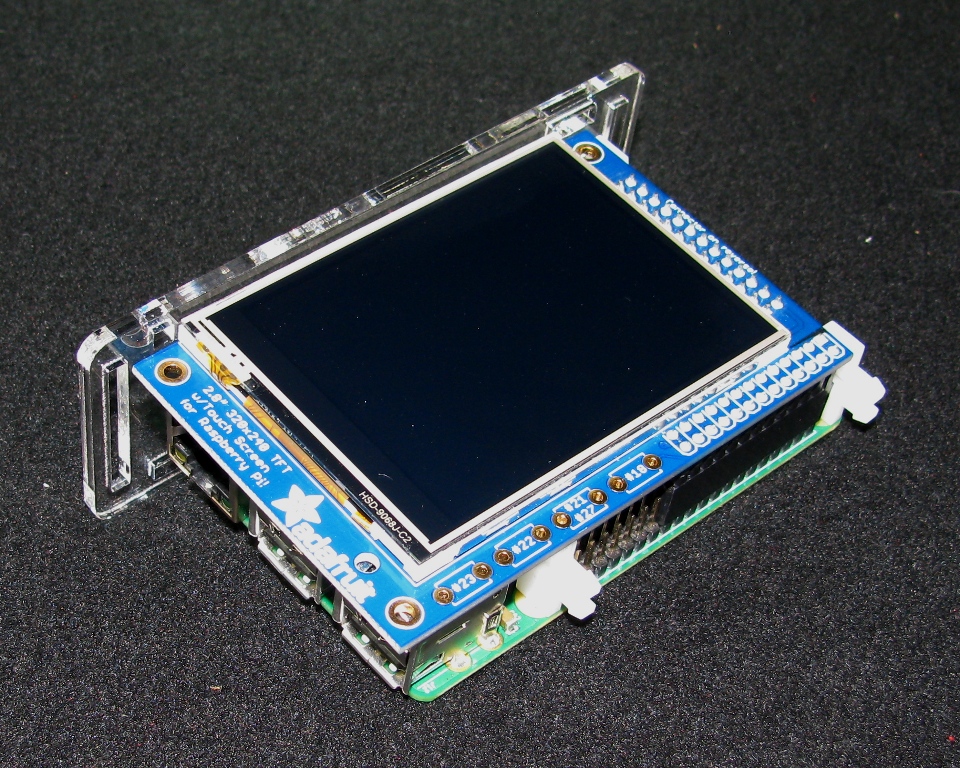

Step 8: Install the PiTFT Shield to the Raspberry Pi

IMG_4851

Step 9: Slide the Raspberry Pi into the Case

IMG_4854

IMG_4856

If you are using this case with the Raspberry Pi A+, simply change out the USB/Ethernet sides.

IMG_4813

CONGRATULATIONS! You now have a fully assembled Raspberry Pi A+/B+ PiTFT Case

IMG_4858

IMG_4860

IMG_4862



Share

8 Responses to “Raspberry Pi Model A+/B+ Adafruit 2.8″ PiTFT Case”

  1. Does the little pitft tactile switches still work with this enclosure?

  2. RoboLemur says:

    There is not enough space on the top panel to have holes for the switches. However, the case should work just fine without the top.

  3. Elvis Presley says:

    What thickness of acrylic is this design expecting?

  4. Craig says:

    3mm, which most 1/8″ acrylic is, for the non-clip parts and 3/32″ for the clipping componenets.

  5. Chase says:

    Does thw Pi2 fit?

  6. Chase says:

    Does *the* Pi2 fit?

  7. Igor Arévalo says:

    Hi!

    it’s a great job.
    …and something like this but for the 3.5 piTFT ??

    Thank you.

  8. Julian Rodriquez says:

    Yes, I believe this should fit both the B and B+.
