Raspberry Pi B+ Clear Case

IMG_4289



*Raspberry Pi 3 compatible.

Step 1: Remove the Masking

IMG_4307

All of the acrylic components have a brown paper masking on them. You will need to remove it to make the parts fit together nicely. It is best to start at a corner.

IMG_4311

IMG_4319Make sure to remove the mask from both sides

IMG_4322

Step 2: Attach the delrin clips

IMG_4324

Take the top panel and the two delrin clips and set them out as shown in the image above.

Flip the top panel over and snap the delrin clips in place.

IMG_4325

Step 3: Mount the PCB

IMG_4329

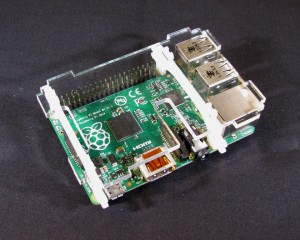

Take the Raspberry Pi and mount it in place as shown in the image above.

Step 4: Place the Pi on the bottom panel

IMG_4334

IMG_4336

Step 5: Put the SD Card side in place

IMG_4338

Step 6: Put the USB/Ethernet side in place

IMG_4340

IMG_4343

Step 7: Snap the Power/HDMI/Audio side into place

IMG_4344

IMG_4348

Step 8: Snap the I/O side in place

IMG_4354

IMG_4356

CONGRATULATIONS! You now have a fully assembled Raspberry Pi B+ Clear Case!
