Raspberry Pi A+ Clear Case

IMG_4681



Grab a kit of this case from our store or grab the design files if you want to make your own or modify it!

Step 1: Remove the Masking

IMG_4638

All of the acrylic components have a brown paper masking on them. You will need to remove it to make the parts fit together nicely. It is best to start at a corner.

IMG_4640

Make sure to remove the mask from both sides

IMG_4643

Step 2: Attach the delrin clips

IMG_4650

IMG_4654

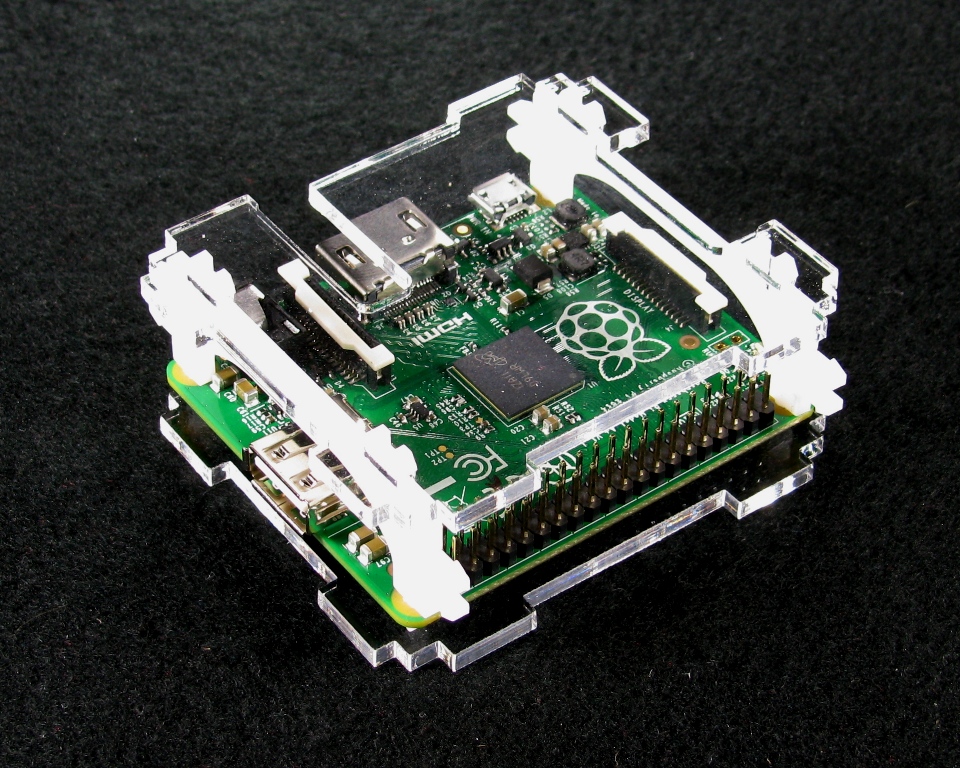

Step 3: Place the Pi on the bottom panel

IMG_4656

IMG_4659

Step 4: Put the USB side in place

IMG_4660

IMG_4664

Step 5: Put the SD Card side in place

IMG_4665

IMG_4670

Step 6: Snap the Power/HDMI/Audio side into place

IMG_4672

IMG_4675

Step 7: Snap the I/O side in place

IMG_4677

IMG_4678

CONGRATULATIONS! You now have a fully assembled Raspberry Pi A+ Clear Case!

IMG_4681
